The HRS / Hirose DF56 Series is a compact 0.3 mm pitch micro-coaxial wire-to-board connector system. It is designed for vertical mating between a board-side SMT receptacle and a cable-side micro-coaxial plug. With a two-row staggered contact layout, metal shielding, multiple grounding points, and a compact mating structure, the DF56 Series is suitable for high-density signal transmission in compact electronic devices.
| Parameter | DF56 Range |
|---|---|
| Connection Type | Board-to-micro-coaxial cable |
| Mating Direction | Vertical mating |
| Contact Pitch | 0.3 mm staggered layout |
| Number of Rows | 2 rows |
| Number of Positions | 26, 30, 40, and 50 positions |
| Standard Applicable Cable | Micro-coaxial cable |
| Applicable Wire Gauge | AWG42 to AWG46 |
| Termination Method | Center conductor soldering |
| Maximum Rated Current | 0.2A per pin |
| Rated Voltage | 30V AC; some current product pages also list 30V DC |
| Operating Temperature | -35°C to +85°C |
| Mating Cycle Life | 20 cycles |
| Contact Plating | Gold plating |
| Shielding Method | Metal shell with multiple grounding points |
| Locking Method | Four-point friction lock |
| Environmental Compliance | RoHS and halogen-free |
| Parameter | Range |
|---|---|
| Operating Temperature | -35°C to +85°C, including temperature rise caused by current flow |
| Operating Humidity | 20% to 80% RH |
| Storage Temperature | -10°C to +60°C |
| Storage Humidity | 40% to 70% RH |
| Damp Heat Test | 40 ± 2°C, 90% to 95% RH, 96 hours |
| Temperature Cycle Test | -55°C to +85°C, 5 cycles |
| Insulator | Black LCP, UL94V-0 |
| Contacts | Phosphor bronze with gold plating |
| External Shield Shell | Stainless steel with tin plating |
| Halogen-Free Requirement | Br ≤ 900 ppm, Cl ≤ 900 ppm, Br + Cl ≤ 1500 ppm |
| Parameter | Specification |
|---|---|
| Rated Current — AWG42 | 0.20A per pin |
| Rated Current — AWG44 | 0.15A per pin |
| Rated Current — AWG46 | 0.10A per pin |
| Rated Voltage | 30V AC |
| Initial Signal Contact Resistance | 80 mΩ maximum |
| Initial Ground Contact Resistance | 80 mΩ maximum |
| Insulation Resistance | 50 MΩ minimum, tested at 100V DC |
| Withstanding Voltage | 100V AC for 1 minute |
| Insulation Resistance After Damp Heat Test | 25 MΩ minimum |
| Mating Cycle Life | 20 cycles |
| Vibration Discontinuity | No discontinuity of 1 μs or longer |
| Customization Item | Available Options |
|---|---|
| Board-Side Connector | DF56 standard vertical SMT receptacle or DF56C raised-board vertical SMT receptacle |
| Cable-Side Connector | DF56 / DF56L micro-coaxial plug with metal shell |
| Number of Positions | 26, 30, 40, and 50 positions |
| Cable Type | Micro-coaxial cable for compact high-density signal transmission |
| Wire Gauge | AWG42, AWG44, and AWG46 |
| Cable Length | Custom lengths are available, such as 50 mm, 100 mm, 150 mm, 300 mm, 500 mm, and other project-specific lengths |
| Wiring Configuration | 1:1 straight wiring, custom pin assignment, signal and ground arrangement, and project-specific wiring layout |
| Shielding | Metal shell structure with multiple grounding points |
| Processing Method | Micro-coaxial cable cutting, stripping, center conductor soldering, shell assembly, and visual inspection |
| Testing | Continuity test, short-circuit test, wiring sequence test, visual inspection, and electrical inspection if required |
| Packaging | Individual packaging, tray packaging, label packaging, and customized packaging |

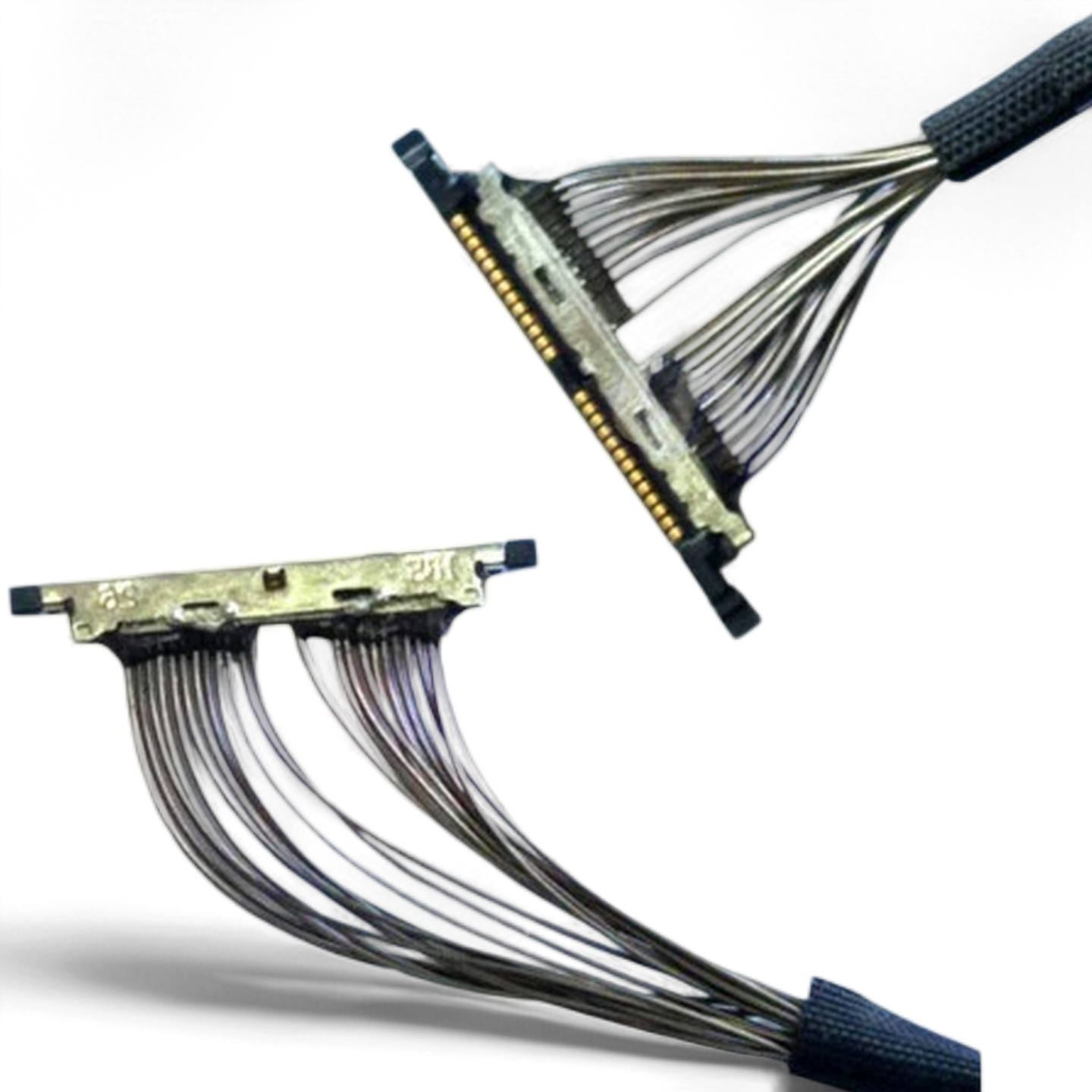

DF56 micro-coaxial cable assemblies are suitable for compact products that require a fine-pitch, high-density board-to-cable connection. Typical applications include display modules, camera modules, medical imaging devices, compact industrial equipment, portable electronics, communication modules, and other systems requiring shielded micro-coaxial signal transmission.
For Existing Product Designs or Samples
If you already have product drawings or physical samples, simply provide them to us, and we can proceed with production.
Custom Product Development (No Existing Reference)
If you need to develop a new product without existing samples or drawings, please provide the following details for our design team to create a tailored solution: a. Electrical Requirements: Operating current and voltage. b. Connector Specifications: Model numbers, samples, or specifications for connectors at both ends of the cable. c. Pin Configuration: Pin-to-pin correspondence for the cable assembly. d. Environmental Conditions: Application scenario (e.g., lawn mowers, mining equipment) and required certifications (oil resistance, waterproofing, high-temperature tolerance, flexing tests, etc.). e. Electrical Testing Requirements: Transmission characteristics, voltage withstand, conduction resistance, insulation resistance, etc.
