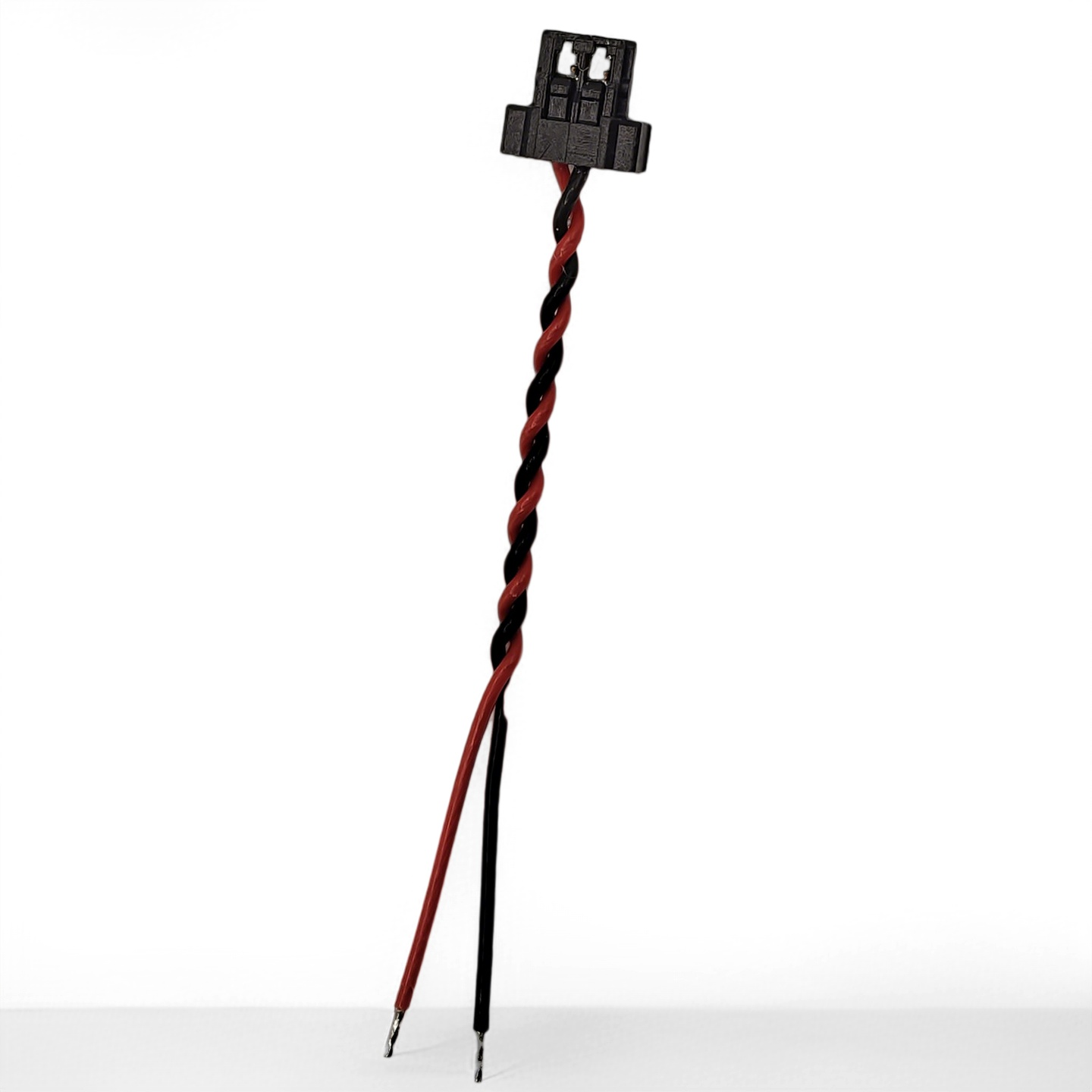

The HRS / Hirose DF52 Series is a compact 0.8 mm pitch wire-to-board connector system designed for high-density internal wiring applications. It uses a single-row structure with a right angle SMT board-side receptacle and a cable-side crimp plug housing. The DF52 Series is suitable for compact electronic devices, display modules, camera modules, portable equipment, industrial devices, and signal cable assemblies that require small size and reliable mating.
| Parameter | DF52 Range |
|---|---|
| Connector Pitch | 0.8 mm |
| Connection Type | Wire-to-board |
| Number of Rows | Single row |
| Number of Positions | 2, 3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 17, and 20 positions |
| Cable-Side Connector | DF52-#P-0.8C crimp plug housing |
| Board-Side Connector | DF52-#S-0.8H(21) right angle SMT receptacle |
| Board-Side Orientation | Horizontal / right angle cable exit |
| Cable-Side Contact | DF52-2832PCF |
| Applicable Wire Gauge | AWG28 to AWG32 |
| Maximum Rated Current | 2.5A per pin under 2-position, AWG28 conditions |
| Rated Voltage | 100V AC/DC |
| Operating Temperature | -40°C to +85°C |
| Mating Cycle Life | 20 cycles |
| Surface Finish | Tin plating |
| Connector Material | Black polyamide, UL94V-0 |
| Environmental Compliance | RoHS and halogen-free |
| Locking Method | Friction lock; complete mating can be visually inspected |
| Parameter | Specification |
|---|---|
| Rated Voltage | 100V AC/DC |
| Initial Contact Resistance | 10 mΩ maximum |
| Contact Resistance After Environmental Testing | 20 mΩ maximum |
| Insulation Resistance | 100 MΩ minimum, tested at 100V DC |
| Withstanding Voltage | 300V AC for 1 minute |
| Vibration Discontinuity | No discontinuity of 1 μs or longer |
| Shock Acceleration | 490 m/s² for 11 ms |
| Mating Cycle Life | 20 cycles |
| Transmission Speed Listed for Online Products | Up to approximately 3.4 Gbps |
| Protocols Listed for Online Products | USB 2.0, LVDS, and HDMI |
| Parameter | Range |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Operating Humidity | 20% to 80% RH, non-condensing |
| Storage Temperature for Unassembled Products | -10°C to +60°C |
| Storage Humidity | 40% to 70% RH |
| Damp Heat Test | 40 ± 2°C, 90% to 95% RH, 96 hours |
| Temperature Cycle Test | -55°C to +85°C, 5 cycles |
| Insulation Material Flame Retardant Rating | UL94V-0 |
| Halogen-Free Standard | Br ≤ 900 ppm, Cl ≤ 900 ppm, Br + Cl ≤ 1500 ppm |
| Customization Item | Available Options |
|---|---|
| Connector End | DF52 cable-side crimp plug housing with DF52-2832PCF contacts |
| Board-Side Connector | DF52 right angle SMT receptacle, horizontal cable-exit type |
| Number of Positions | 2, 3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 17, and 20 positions |
| Wire Gauge | AWG28, AWG30, and AWG32 |
| Cable Length | Custom lengths are available, such as 50 mm, 100 mm, 300 mm, 500 mm, 1 m, and other project-specific lengths |
| Wiring Configuration | 1:1 straight wiring, cross wiring, split wiring, terminal conversion wiring, and custom pin assignments |
| Opposite End Interface | Stripped wire, tinned wire, terminals, JST, Molex, HRS connectors, Dupont terminals, or other custom interfaces |
| Processing Method | Crimp termination, wire cutting, stripping, tinning, labeling, and harness assembly |
| Testing | Continuity test, short-circuit test, wiring sequence test, visual inspection, and electrical inspection if required |
| Packaging | Individual packaging, bulk bag packaging, label packaging, and customized packaging |
DF52 cable assemblies are suitable for compact wire-to-board connections where a small 0.8 mm pitch connector is required. Typical applications include display modules, camera modules, portable electronics, compact industrial devices, communication equipment, consumer electronics, and internal signal harnesses that require a low-profile right angle SMT board interface.
For Existing Product Designs or Samples
If you already have product drawings or physical samples, simply provide them to us, and we can proceed with production.
Custom Product Development (No Existing Reference)
If you need to develop a new product without existing samples or drawings, please provide the following details for our design team to create a tailored solution: a. Electrical Requirements: Operating current and voltage. b. Connector Specifications: Model numbers, samples, or specifications for connectors at both ends of the cable. c. Pin Configuration: Pin-to-pin correspondence for the cable assembly. d. Environmental Conditions: Application scenario (e.g., lawn mowers, mining equipment) and required certifications (oil resistance, waterproofing, high-temperature tolerance, flexing tests, etc.). e. Electrical Testing Requirements: Transmission characteristics, voltage withstand, conduction resistance, insulation resistance, etc.
