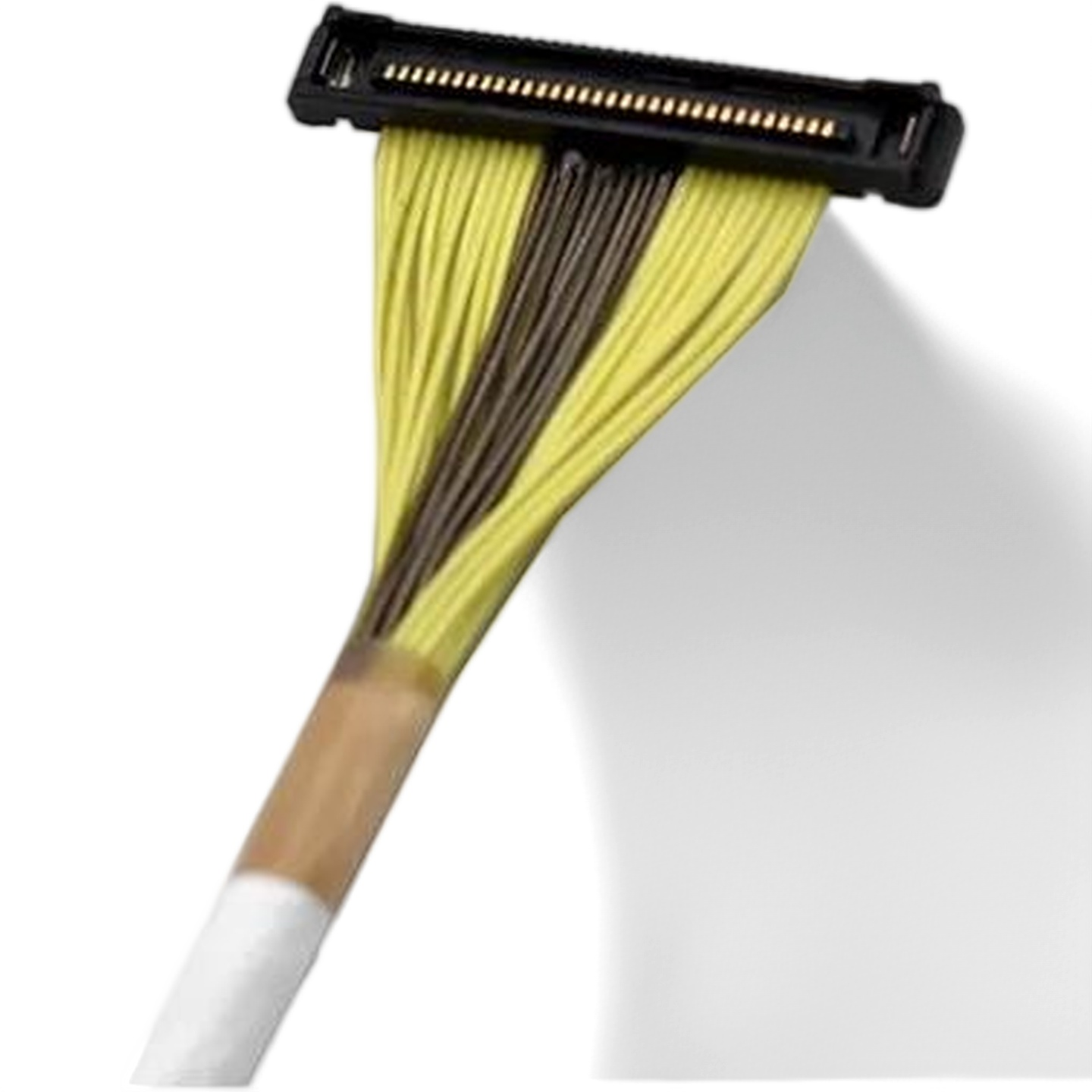

The HRS / Hirose DF36 Series is a compact 0.4 mm pitch micro-coaxial wire-to-board connector system. It is designed for vertical mating between a board-side receptacle and a cable-side plug, making it suitable for compact display modules, camera modules, portable electronics, medical devices, industrial equipment, and other applications requiring fine-pitch micro-coaxial cable assemblies.
The standard type has an approximate depth of 4.4 mm, a mated height of 1.5 mm, and multiple grounding spring contacts. Available position counts include 15, 25, 30, 40, 45, and 50 positions.
The space-saving type has an approximate depth of 2.8 mm while maintaining the same 1.5 mm mated height. Available position counts include 15, 20, and 25 positions.
The standard shield case uses a tin-plated structure and is designed to mate with the DF36A standard board-side receptacle.
The space-saving shield case uses a gold-plated structure and is designed to mate with the DF36 space-saving receptacle without the “A” designation.
| Parameter | DF36 Series Range | Description |
|---|---|---|
| Connector Type | Micro-coaxial wire-to-board connector | Board-side receptacle plus cable-side plug |
| Contact Pitch | 0.4 mm | Single-row structure |
| Mating Direction | Vertical mating | The cable-side plug is vertically pressed into the board-side receptacle |
| Number of Positions | 15 to 50 positions | 15, 20, 25, 30, 40, 45, and 50 positions |
| Standard Type Positions | 15, 25, 30, 40, 45, and 50 positions | DF36A board-side receptacle |
| Space-Saving Type Positions | 15, 20, and 25 positions | DF36 board-side receptacle |
| Applicable Cable | Micro-coaxial cable | Standard HRS assembly range |
| Applicable Wire Gauge | AWG42 to AWG46 | AWG42 is the largest size; AWG46 is the smallest size |
| Single-Wire Outside Diameter | 0.33 mm maximum | Maximum outside diameter of the micro-coaxial cable jacket |
| Dielectric Diameter | 0.20 mm maximum | Insulation dielectric size of the cable |
| Rated Current | 0.10 to 0.25A per pin | Varies by wire gauge |
| Rated Voltage | 30V AC | No corresponding DC rated voltage is specified by the official catalog |
| Operating Temperature | -35°C to +85°C | Includes temperature rise caused by connector current flow |
| Operating Humidity | 20% to 80% RH | Non-condensing |
| Storage Temperature | -10°C to +60°C | Long-term storage conditions for unassembled products |
| Storage Humidity | 40% to 70% RH | Non-condensing |
| Contact Resistance | 80 mΩ maximum | Both signal contacts and ground contacts are rated at 80 mΩ maximum |
| Insulation Resistance | 50 MΩ minimum | Tested at 100V DC |
| Withstanding Voltage | 100V AC for 1 minute | No insulation breakdown |
| Mating Cycle Life | 30 cycles | Contact resistance change must not exceed 50 mΩ |
| Mated Height | 1.5 ± 0.15 mm | Same for both standard and space-saving types |
| Effective Contact Length | 0.4 mm | Vertical mating structure |
| Locking Structure | Four-point friction lock | Two locking points on each side |
| Flame Retardant Rating | UL94 V-0 | LCP insulation material |
| Environmental Compliance | RoHS2 and halogen-free | Meets the definition of IEC 61249-2-21 |
| Customization Item | Available Options |
|---|---|
| Board-Side Connector | DF36A standard receptacle or DF36 space-saving receptacle |
| Cable-Side Connector | DF36 / DF36C micro-coaxial plug body with external shield case |
| Number of Positions | 15, 20, 25, 30, 40, 45, and 50 positions |
| Cable Type | Micro-coaxial cable for compact high-density signal transmission |
| Wire Gauge | AWG42, AWG44, and AWG46 within the standard DF36 assembly range |
| Cable Length | Custom lengths are available, such as 50 mm, 100 mm, 150 mm, 300 mm, 500 mm, and other project-specific lengths |
| Wiring Configuration | 1:1 straight wiring, custom pin assignment, signal and ground arrangement, and project-specific wiring layout |
| Shielding | External shield case options for standard or space-saving connector types |
| Testing | Continuity test, short-circuit test, wiring sequence test, visual inspection, and electrical inspection if required |
| Packaging | Individual packaging, tray packaging, label packaging, and customized packaging |
DF36 micro-coaxial cable assemblies are suitable for compact products that require a low-profile, high-density board-to-cable connection. Typical applications include display modules, camera modules, medical imaging equipment, compact industrial devices, portable electronics, communication modules, and other systems using fine-pitch micro-coaxial signal transmission.
For Existing Product Designs or Samples
If you already have product drawings or physical samples, simply provide them to us, and we can proceed with production.
Custom Product Development (No Existing Reference)
If you need to develop a new product without existing samples or drawings, please provide the following details for our design team to create a tailored solution: a. Electrical Requirements: Operating current and voltage. b. Connector Specifications: Model numbers, samples, or specifications for connectors at both ends of the cable. c. Pin Configuration: Pin-to-pin correspondence for the cable assembly. d. Environmental Conditions: Application scenario (e.g., lawn mowers, mining equipment) and required certifications (oil resistance, waterproofing, high-temperature tolerance, flexing tests, etc.). e. Electrical Testing Requirements: Transmission characteristics, voltage withstand, conduction resistance, insulation resistance, etc.
