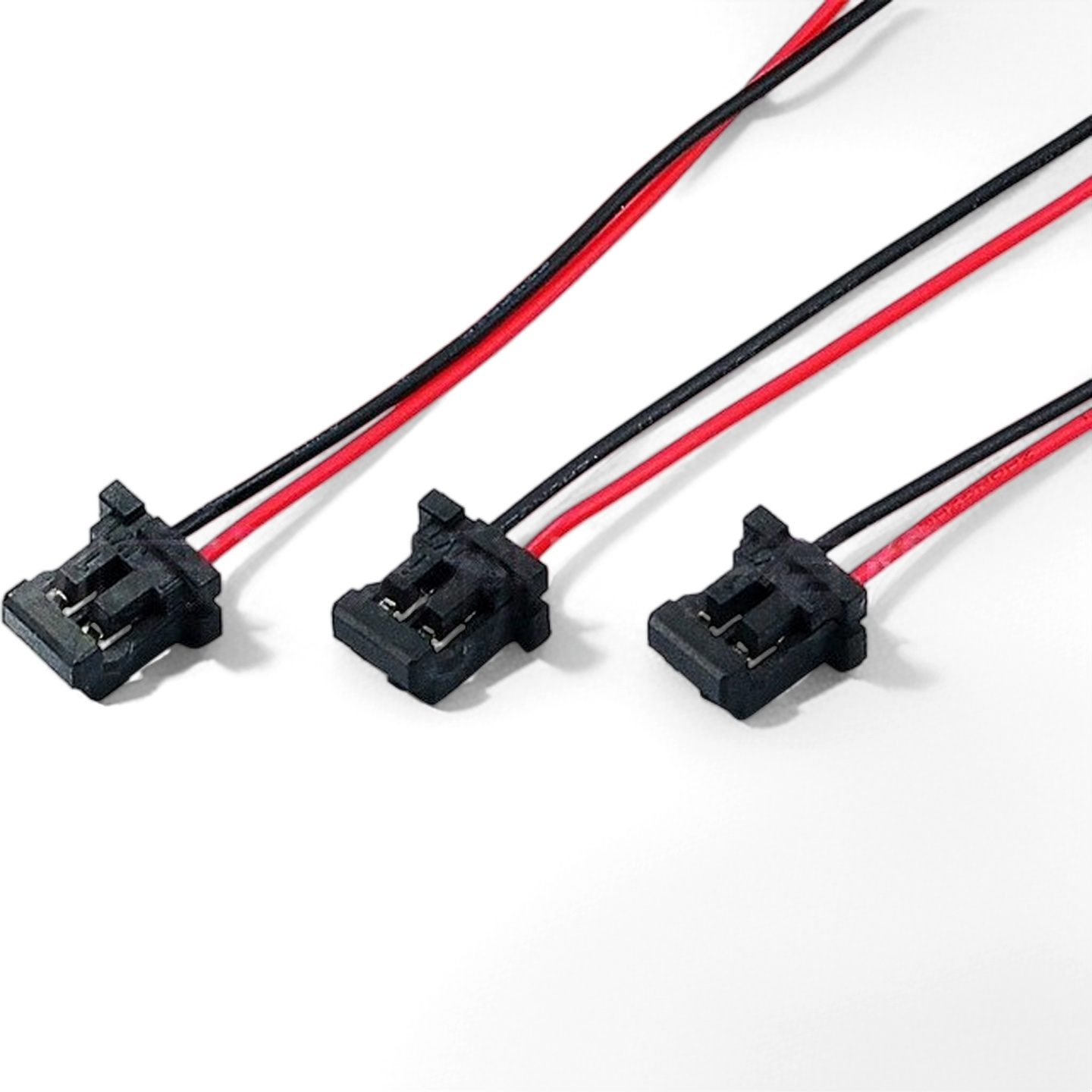

The HRS / Hirose DF3 Series is a 2.0 mm pitch connector system for discrete wire connections. It supports wire-to-board and wire-to-wire configurations, including crimp sockets, pin headers, in-line plugs, socket contacts, and plug contacts. The DF3 Series is commonly used in internal signal cable assemblies for office automation equipment, printers, copiers, control devices, and general electronic equipment.
| Item | Parameter Range |
|---|---|
| Series | HRS / Hirose DF3, DF3A, DF3AA, DF3EA |
| Connector Type | Crimp socket, pin header, in-line plug, and contact |
| Connection Type | Wire-to-board and wire-to-wire |
| Pitch | 2.0 mm |
| Number of Rows | Single row, 1 row |
| Number of Positions | 2 to 15 positions |
| Termination Method | Crimp termination |
| Applicable Wire Type | Discrete wire |
| Applicable Wire Gauge | AWG22, AWG24, AWG26, AWG28 |
| Wire Outside Diameter | Approximately 0.75 mm to 1.5 mm, depending on the contact type and crimping method |
| Rated Current | AWG22 to AWG24: 3A per pin; AWG26: 2A per pin; AWG28: 1A per pin |
| Rated Voltage | General specification: 250V AC/DC; UL/CSA specification: 30V AC/DC |
| Operating Temperature | -55°C to +105°C, including temperature rise caused by current flow |
| Operating Humidity | 40% to 80%, non-condensing |
| Contact Resistance | 30 mΩ maximum |
| Insulation Resistance | 1,000 MΩ minimum |
| Withstanding Voltage | 650V AC for 1 minute |
| Mating Cycle Life | Tin plating: 30 cycles; gold plating: 50 cycles |
| Contact Material | Phosphor bronze |
| Contact Plating | Tin plating or gold plating |
| Housing Material | PA, UL94V-0 |
| Available Board-Side Structures | DIP straight type, DIP right angle type, SMT straight type, and SMT right angle type |
| Typical Applications | Copiers, printers, office automation equipment, and general internal signal cable assemblies |
The DF3 Series is officially defined as a 2 mm pitch connector system for discrete wire connection. It supports headers, plugs, sockets, and contacts. The available number of positions ranges from 2 to 15 positions. The rated current is up to 3.0A, the rated voltage is 250V AC/DC, the termination method is crimping, and the recommended wire type is discrete wire.
| Customization Item | Available Options |
|---|---|
| Connector End | DF3 crimp socket, DF3 in-line plug, or DF3AA in-line plug with panel lock |
| Board-Side Connector | DIP straight header, DIP right angle header, SMT straight header, or SMT right angle header |
| Number of Positions | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, and 15 positions |
| Wire Gauge | AWG22, AWG24, AWG26, and AWG28 |
| Wire Type | Discrete wire for internal electronic cable assemblies |
| Cable Length | Custom lengths are available, such as 50 mm, 100 mm, 300 mm, 500 mm, 1 m, and other customer-specified lengths |
| Wiring Configuration | 1:1 straight wiring, cross wiring, split wiring, and terminal conversion wiring |
| Opposite End Interface | Stripped wire, tinned wire, terminals, JST, Molex, HRS connectors, Dupont terminals, and other custom interfaces |
| Testing | Continuity test, short-circuit test, wiring sequence test, pull test if required, and visual inspection |
| Packaging | Individual packaging, bulk bag packaging, label packaging, and customized packaging |
For Existing Product Designs or Samples
If you already have product drawings or physical samples, simply provide them to us, and we can proceed with production.
Custom Product Development (No Existing Reference)
If you need to develop a new product without existing samples or drawings, please provide the following details for our design team to create a tailored solution: a. Electrical Requirements: Operating current and voltage. b. Connector Specifications: Model numbers, samples, or specifications for connectors at both ends of the cable. c. Pin Configuration: Pin-to-pin correspondence for the cable assembly. d. Environmental Conditions: Application scenario (e.g., lawn mowers, mining equipment) and required certifications (oil resistance, waterproofing, high-temperature tolerance, flexing tests, etc.). e. Electrical Testing Requirements: Transmission characteristics, voltage withstand, conduction resistance, insulation resistance, etc.
