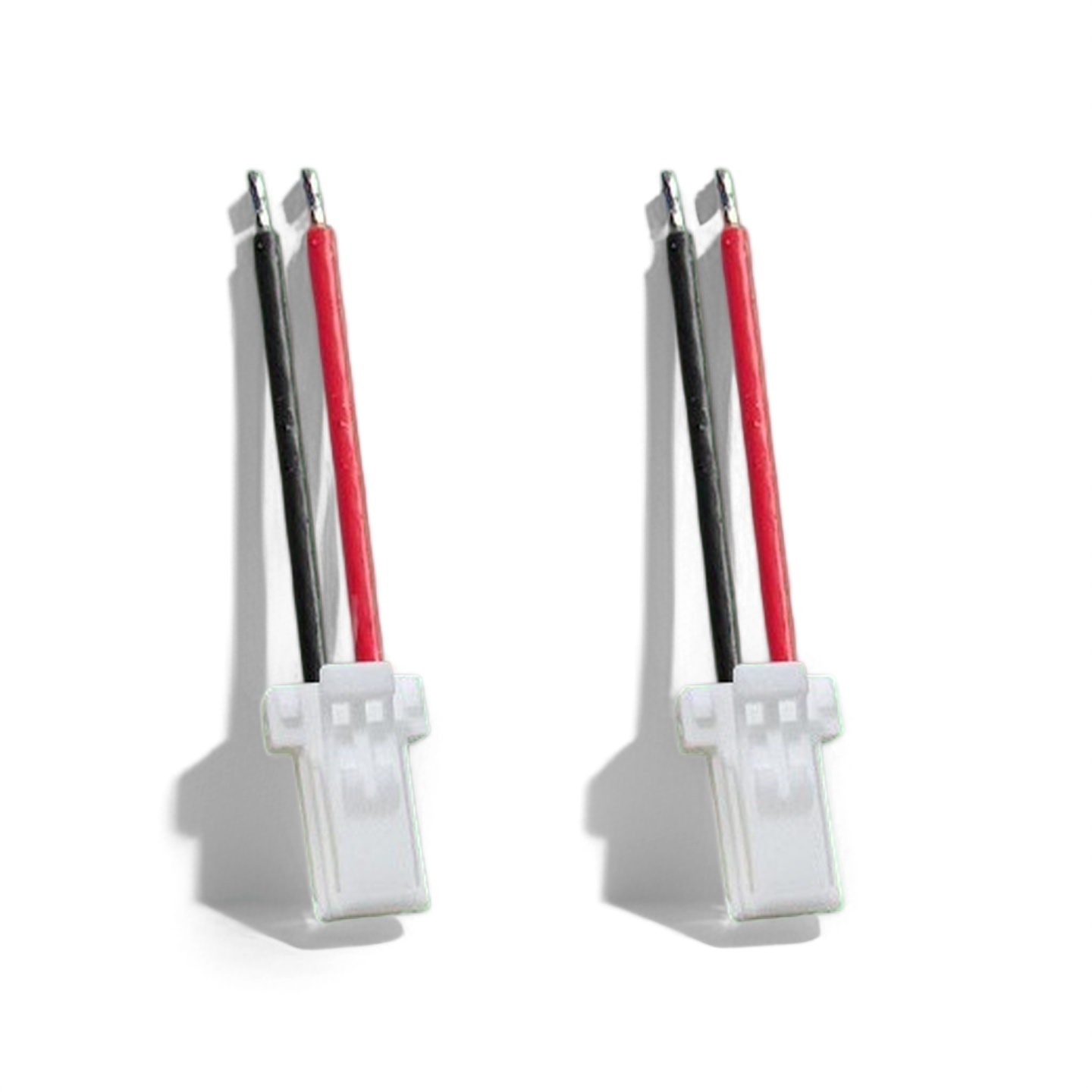

The HRS DF1E series is a 2.5 mm pitch positive lock connector series for discrete wire connections. It is commonly used in wire-to-board and wire-to-wire cable assemblies for internal signal connections, office equipment, printers, copiers, and industrial devices.
The retainer is used with the socket and in-line plug to improve contact retention and help prevent incomplete contact insertion.
Reel Contact
Loose Contact
Reel Contact
Loose Contact
The following specifications are commonly used when designing, quoting, or producing a custom HRS DF1E cable assembly.
| Parameter | DF1E Cable Assembly Range / Design Limitation |
|---|---|
| Series | HRS / Hirose DF1E Series |
| Type | Discrete wire harness / cable assembly |
| Connection Application | Wire-to-board and wire-to-wire / in-line connection |
| Pitch | 2.5 mm |
| Rows | Single row |
| Position Range | Header and socket: 2 to 15 positions; in-line plug and retainer: 2 to 10 positions. Some position counts are not available for certain model types. |
| Connector Structure | Board-side pin header, cable-side socket, in-line plug, retainer, and crimp contact |
| Locking Method | Positive lock; some in-line plugs include a panel mount lock, while others are designed without a panel mount lock |
| Termination Method | Crimp termination |
| Applicable Wire | Discrete wire with tinned annealed copper stranded conductor |
| Common UL Wire Types | UL1007 / UL1061, depending on the crimp contact and termination method |
| Wire Gauge Range | AWG20, AWG22, AWG24, AWG26, AWG28, and AWG30 |
| Rated Voltage | 250V AC/DC |
| UL / C-UL Rated Voltage | 29.9V AC/DC, approximately equal to 30V AC/DC |
| Rated Current | 0.5A to 3A per contact, depending on wire gauge |
| Operating Temperature | -35°C to +85°C |
| Operating Humidity | 40% to 80%, non-condensing |
| Contact Resistance | 30 mΩ maximum |
| Insulation Resistance | 1000 MΩ minimum at 500V DC |
| Withstanding Voltage | 650V AC for 1 minute |
| Mating Cycle Life | 30 cycles for tin-plated contacts; 50 cycles for gold-plated contacts |
| Contact Plating | Tin plating or gold plating |
| Housing Material | Polyamide, UL94V-0 |
| Typical Applications | Office equipment, printers, copiers, industrial equipment internal signal connections, wire-to-board signal connections, and wire-to-wire signal connections |
For Existing Product Designs or Samples
If you already have product drawings or physical samples, simply provide them to us, and we can proceed with production.
Custom Product Development (No Existing Reference)
If you need to develop a new product without existing samples or drawings, please provide the following details for our design team to create a tailored solution: a. Electrical Requirements: Operating current and voltage. b. Connector Specifications: Model numbers, samples, or specifications for connectors at both ends of the cable. c. Pin Configuration: Pin-to-pin correspondence for the cable assembly. d. Environmental Conditions: Application scenario (e.g., lawn mowers, mining equipment) and required certifications (oil resistance, waterproofing, high-temperature tolerance, flexing tests, etc.). e. Electrical Testing Requirements: Transmission characteristics, voltage withstand, conduction resistance, insulation resistance, etc.
