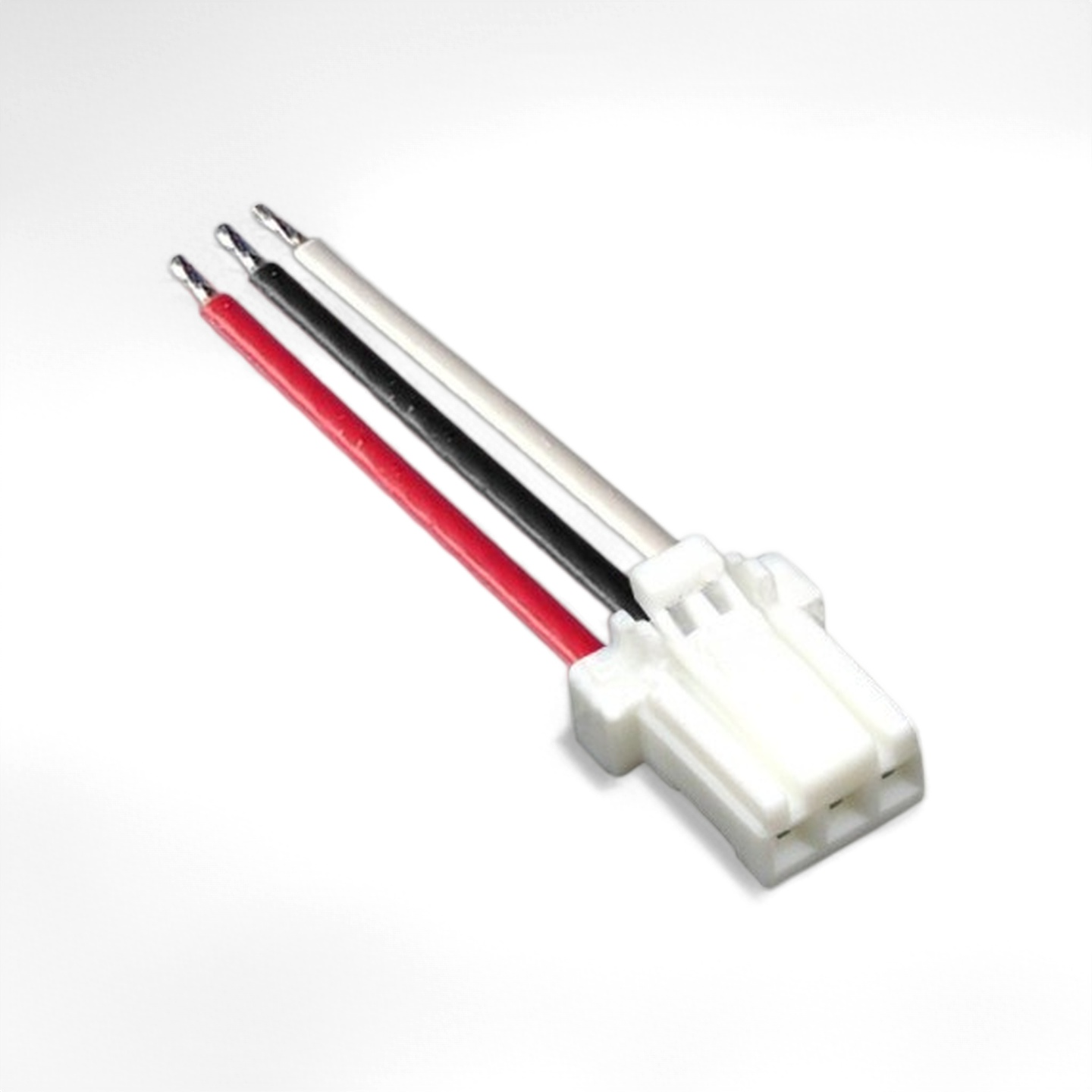

The HRS DF1B series is a 2.5 mm pitch discrete wire connector series commonly used for wire-to-board and wire-to-wire cable assemblies. Below is a structured model list and general cable assembly parameter range for engineering selection and custom wire harness production.
Tin-Plated Models:
Gold-Plated Models:
Tin-Plated Models:
Gold-Plated Models:
Tin-Plated Models:
Gold-Plated Models:
Tin-Plated Models:
Gold-Plated Models:
Reel Packaging:
Loose-Piece Packaging:
Reel Packaging:
Loose-Piece Packaging:
The following parameters are commonly used when designing or quoting a custom HRS DF1B wire harness or cable assembly.
| Parameter | DF1B Cable Assembly Range / Design Limitation |
|---|---|
| Series | HRS / Hirose DF1B Series |
| Type | Discrete wire harness or cable assembly for wire-to-board and wire-to-wire connections |
| Pitch | 2.5 mm |
| Rows | Single row and double row |
| Position Range | Single row is generally 2 to 14 positions; double row is generally 4 to 40 positions, depending on the housing, plug, or pin header type |
| Termination Method | Crimp termination |
| Applicable Wire | Discrete wire; commonly used with UL1007 or UL1061 tinned annealed copper stranded wire |
| Wire Gauge Range | AWG20, AWG22, AWG24, AWG26, AWG28, and AWG30 |
| Rated Voltage | 250V AC/DC; UL/CSA certified rated voltage is 30V AC/DC |
| Rated Current | 0.5A to 5A per contact, depending on wire gauge and number of positions |
| Operating Temperature | -35°C to +85°C |
| Contact Resistance | 30 mΩ maximum |
| Insulation Resistance | 1000 MΩ minimum at 500V DC |
| Withstanding Voltage | 650V AC for 1 minute |
| Mating Cycle Life | 30 cycles for tin-plated contacts; 50 cycles for gold-plated contacts |
| Contact Plating | Tin-plated or gold-plated |
| Housing Material | White polyamide, UL94V-0 |
| Typical Applications | Printers, copiers, office equipment, industrial equipment, and internal signal connections |
For Existing Product Designs or Samples
If you already have product drawings or physical samples, simply provide them to us, and we can proceed with production.
Custom Product Development (No Existing Reference)
If you need to develop a new product without existing samples or drawings, please provide the following details for our design team to create a tailored solution: a. Electrical Requirements: Operating current and voltage. b. Connector Specifications: Model numbers, samples, or specifications for connectors at both ends of the cable. c. Pin Configuration: Pin-to-pin correspondence for the cable assembly. d. Environmental Conditions: Application scenario (e.g., lawn mowers, mining equipment) and required certifications (oil resistance, waterproofing, high-temperature tolerance, flexing tests, etc.). e. Electrical Testing Requirements: Transmission characteristics, voltage withstand, conduction resistance, insulation resistance, etc.
